Ingest to Lakebase from Zerobus in Near-Real-Time

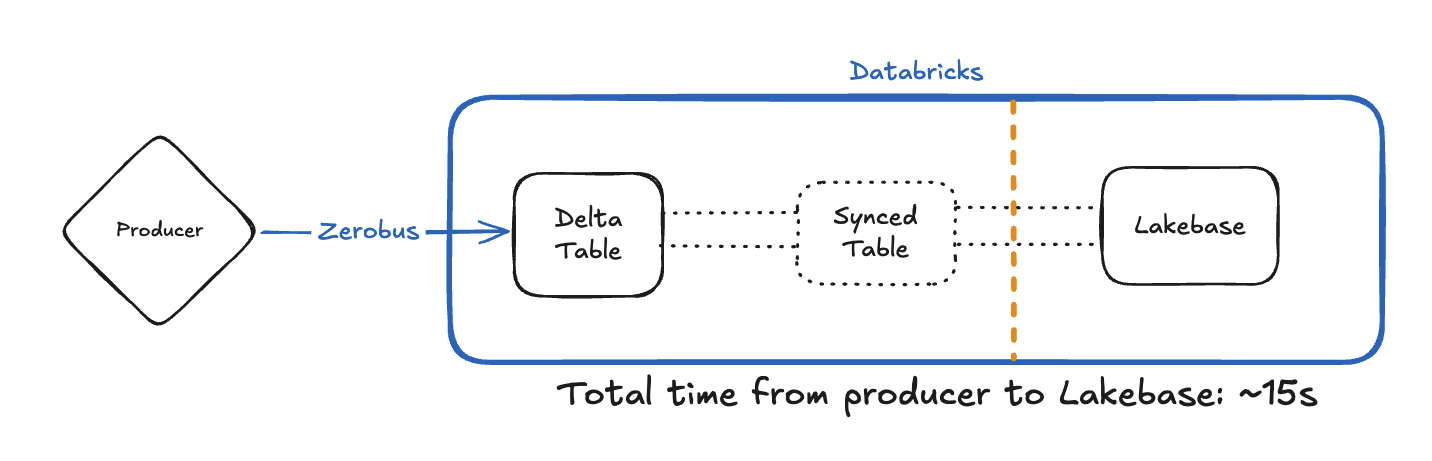

Ingesting data pushed to Zerobus is a very straightforward architecture: land data in a Delta table using Zerobus, then create a synced table on top of that which automatically mirrors your data into Lakebase for you.

This carries the advantage of more configurable costing and scheduling, while ensuring data is immediately available in UC for analytics.

You’ll need:

• A service principal with SELECT and MODIFY privileges on the target Delta table
• Change Data Feed must be enabled on the target delta table
• [Optional] A scheduled job to trigger the sync to Lakebase

That’s it! On continuous mode, data will land in Lakebase within about 15 seconds. For append-only zerobus ingestion, we recommend setting your synced table to triggered mode, as append-only workloads won’t result in data changing.

When to Use This Approach

Use this approach when you need near-real-time data without a maintenance overhead cost. It’s slower than ingesting directly to Lakebase with Spark Real Time Mode (which runs in sub-second time), but your pipeline is more flexible and is managed + scaled for you.

Also use this approach if you are cost-sensitive. You can sacrifice ingestion speed for cost improvements by switching to triggered mode, running your table based on your actual SLA instead of as-fast-as-possible.

If you have existing Kafka producers, don’t use a fan-out pattern from your broker, and don’t need actually-real-time processing, this is a good option for you. In this specific case, Zerobus will let you wipe out your Kafka broker overhead entirely — it’s a zero-bus architecture.

When Not to Use This Approach

Don’t use this approach when you need sub-second latency or similar; synced tables are fast but the SLA is around 15 seconds in the fastest mode.

If you have a hardcore requirement for a Kafka fanout architecture, this architecture may not be for you. The key is that producers have to write directly to Zerobus instead of a Kafka broker (optionally using the Kafka APIs for Zerobus). That lets you wipe out your broker (hence the name “zero bus”), but Zerobus itself is not a message bus so you won’t be able to fan out from Zerobus. You’d have to configure your producers to write to Zerobus in addition to your existing broker; if this is fine with you then go for it! If not, it might be worth investigating ingesting directly from Kafka.

Taking it Further

Ingestion from zerobus doesn’t have to mean raw data. You can stream changes to your Delta table and process data incrementally using a declarative pipeline, applying arbitrary transformations and enrichments to your data along the way. You’d change your synced table to target the final output of your pipeline in this scenario. In this way, you can have a full near-real-time pipeline between your raw data and your Lakebase serving with minimal overhead.

Getting Started

Included is Terraform code (zerobus-to-lakebase.tf) for deploying a sample table and service principal with appropriate permissions, plus an autoscaling Lakebase project and synced table. You can use the script publish-to-zerobus.py, which inserts arbitrary data into your table using the Zerobus Python SDK.
